Lithium-ion batteries power everything from smartphones to electric cars. But improper charging and discharging can shorten their lifespan.
These rechargeable batteries store energy by moving lithium ions between electrodes. Over time, poor charging habits can lead to reduced performance, overheating, or even safety risks.
In this post, you’ll learn how lithium-ion batteries work, the science behind charging and discharging, and best practices to extend their lifespan.
How Lithium-Ion Batteries Work
Lithium-ion batteries power many modern devices, from smartphones to electric vehicles. They store and release energy efficiently, making them the preferred choice for rechargeable power solutions. Understanding how they work starts with knowing their components and electrochemical processes.
Basic Components of a Lithium-Ion Battery
Each lithium-ion battery consists of key parts that enable energy storage and transfer:
- Anode (Negative Electrode): Stores lithium ions when the battery is charged. Typically made of graphite.
- Cathode (Positive Electrode): Releases lithium ions during discharge. Common materials include lithium cobalt oxide (LiCoO₂), lithium iron phosphate (LiFePO₄), and lithium manganese oxide (LiMn₂O₄).
- Electrolyte: A liquid or gel medium allowing lithium ions to move between electrodes. Usually made of lithium salt dissolved in an organic solvent.
- Separator: A thin, porous membrane preventing direct contact between anode and cathode, avoiding short circuits.
- Current Collectors: Conductive metal plates collecting and transferring electrons to an external circuit.
Structure of a Lithium-Ion Battery
Below is a simple diagram of a lithium-ion battery’s internal structure:
| Component | Function |
|---|---|
| Anode | Stores lithium ions during charging |
| Cathode | Releases lithium ions during discharge |
| Electrolyte | Enables ion movement between electrodes |
| Separator | Prevents short circuits |
| Current Collectors | Transfers electrons to power external devices |
Electrochemical Reaction During Charging and Discharging
Lithium-ion batteries store and release energy by moving lithium ions between electrodes.
- Charging Process:
- Lithium ions move from the cathode to the anode through the electrolyte.
- Electrons travel externally from the positive to the negative terminal, charging the battery.
- The anode stores lithium ions, preparing for discharge.
- Discharging Process:
- Lithium ions leave the anode and travel back to the cathode.
- Electrons flow through the external circuit, generating power for connected devices.
- This process continues until the battery reaches its discharge limit.
Oxidation-Reduction (Redox) Reactions Explained
A lithium-ion battery relies on redox (reduction-oxidation) reactions to function:
- Reduction (At the Cathode): Lithium ions combine with electrons, forming lithium-metal oxides.
- Equation: CoO₂ + Li⁺ + e⁻ → LiCoO₂
- Oxidation (At the Anode): Lithium atoms release electrons, becoming lithium ions.
- Equation: LiC₆ → C₆ + Li⁺ + e⁻
These reactions ensure continuous energy flow, allowing repeated charging and discharging cycles.
Understanding Charging of Lithium-Ion Battery
Lithium-ion batteries store energy through a controlled charging process. Proper charging ensures efficiency, longevity, and safety. This section explains how charging works, common methods, voltage requirements, and best practices.
How Does Charging a Lithium-Ion Battery Work?
Charging a lithium-ion battery involves ion movement and electrical energy conversion:
- Ion Flow: Lithium ions migrate from the cathode to the anode through the electrolyte.
- Electron Flow: Electrons travel externally from the positive to the negative terminal, providing power to the battery.
- Energy Storage: The anode absorbs lithium ions, storing energy until discharge.
Standard Charging Methods
Lithium-ion batteries use specific charging techniques to prevent damage and ensure efficiency:
- Constant Current-Constant Voltage (CC-CV) Method:
- The most widely used charging technique.
- Step 1: Constant current (CC) phase – Supplies steady current, raising battery voltage.
- Step 2: Constant voltage (CV) phase – Holds voltage steady while reducing current.
- Ensures a full charge without overloading the battery.
- Trickle Charging & Float Charging:
- Trickle Charging: Supplies a low current to maintain charge over time.
- Float Charging: Keeps battery at a constant voltage to prevent over-discharge.
- Common in standby applications like emergency power supplies.
Charging Current and Voltage
Proper voltage and current levels extend battery lifespan while preventing overheating or degradation.
| Parameter | Standard Value | Effect on Battery |
|---|---|---|
| Charging Voltage | 3.7V – 4.2V | Higher voltage damages cells; lower voltage leads to incomplete charging. |
| Charging Current | 0.5C – 1C (50-100% capacity per hour) | High current reduces lifespan; low current extends it but increases charge time. |
- Optimal Charging Current: Around 0.5C to 1C (C = battery capacity).
- Safe Voltage Range: Never exceed 4.2V per cell to prevent thermal runaway.
Charging Stages
Lithium-ion batteries charge in distinct stages to maximize efficiency:
- Constant Current (CC) Phase – Rapid Charging
- Supplies a steady current, increasing voltage quickly.
- Charges up to 70-80% capacity efficiently.
- Constant Voltage (CV) Phase – Saturation Charging
- Maintains voltage at 4.2V while reducing current.
- Slower charging as lithium ions stabilize.
- Trickle Charge – Battery Balancing
- Small current flow balances individual cells.
- Ensures full charge without exceeding safe limits.
Best Practices for Charging Lithium-Ion Batteries
To maximize battery performance and safety:
✅ Use Manufacturer-Approved Chargers – Prevents overvoltage or incorrect current flow.
✅ Avoid Overcharging – Most modern chargers stop at 4.2V, but checking is good practice.
✅ Charge at Optimal Temperatures (10-30°C) – Extreme heat or cold damages battery chemistry.
✅ Avoid Deep Discharges Before Charging – Keeping charge levels between 20-80% extends lifespan.
✅ Limit Fast Charging When Possible – Generates heat, reducing long-term capacity.
Understanding Discharging of Lithium-Ion Battery
Discharging a lithium-ion battery allows it to supply power to devices. This process moves lithium ions and generates an electric current. Proper discharge management ensures efficiency, extends battery life, and prevents damage.

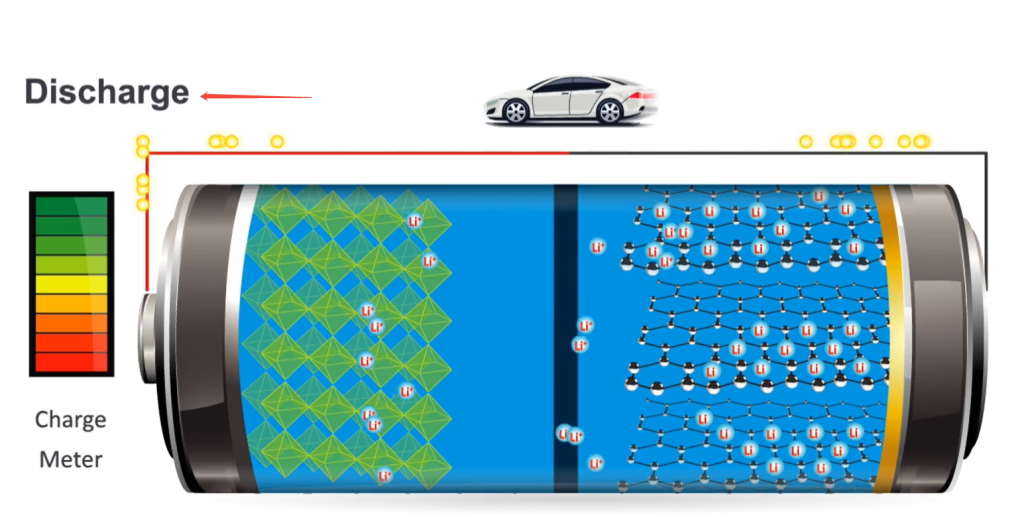

How Does Discharging a Lithium-Ion Battery Work?
Lithium-ion batteries release stored energy through controlled ion and electron movement:
- Ion Flow: Lithium ions migrate from the anode to the cathode via the electrolyte.
- Electron Flow: Electrons travel through an external circuit, generating power for connected devices.
- Energy Release: The battery continues discharging until it reaches a safe voltage limit.
Discharge Voltage and Current
Maintaining the correct discharge voltage and current prevents capacity loss and overheating.
| Parameter | Safe Range | Effect on Battery |
|---|---|---|
| Discharge Voltage | 3.0V – 4.2V | Lower voltage risks permanent damage, higher voltage ensures efficient performance. |
| Discharge Current | Varies by battery | High current increases heat, reducing lifespan. |
- Low voltage (below 3.0V): Permanent capacity loss may occur.
- High discharge rates: Faster power delivery but higher heat generation.
Depth of Discharge (DoD) and Its Importance
Depth of Discharge (DoD) refers to the percentage of battery capacity used before recharging.
- High DoD (90-100%) – Shortens battery lifespan due to increased stress.
- Moderate DoD (20-80%) – Balances performance and longevity.
- Low DoD (<20%) – Minimizes wear but underutilizes battery potential.
Recommended DoD for Longevity:
| DoD Range | Impact on Battery Life |
|---|---|
| 20-80% | Ideal balance between longevity and usability. |
| 80-100% | Reduces cycle life due to increased wear. |
| Below 20% | Risk of over-discharge, potential damage. |
Factors Affecting Discharge Performance
Several factors impact how efficiently a lithium-ion battery discharges:
- Load Variations & Power Demand: High-power devices drain batteries faster.
- Temperature Effects:
- Cold temperatures: Reduce discharge efficiency, lowering available capacity.
- High temperatures: Increase ion movement but accelerate degradation.
- Battery Aging & Capacity Loss: Over time, repeated cycles cause electrodes to degrade, reducing overall efficiency.
Best Practices for Discharging Lithium-Ion Batteries
Following proper discharge habits extends battery lifespan and ensures reliable performance:
✅ Avoid Deep Discharges – Recharge before dropping below 20% capacity.
✅ Monitor Voltage Levels – Use a battery management system (BMS) for optimal performance.
✅ Store Batteries Partially Charged – Keep at 50-60% if unused for extended periods.
✅ Minimize High Discharge Rates – Prevents overheating and reduces wear.
✅ Operate in Ideal Temperature Ranges – Maintain use between 10°C – 30°C for best efficiency.
Charging and Discharging Curve Analysis
A lithium-ion battery follows specific charge and discharge patterns. Understanding these curves helps optimize battery performance, efficiency, and longevity.

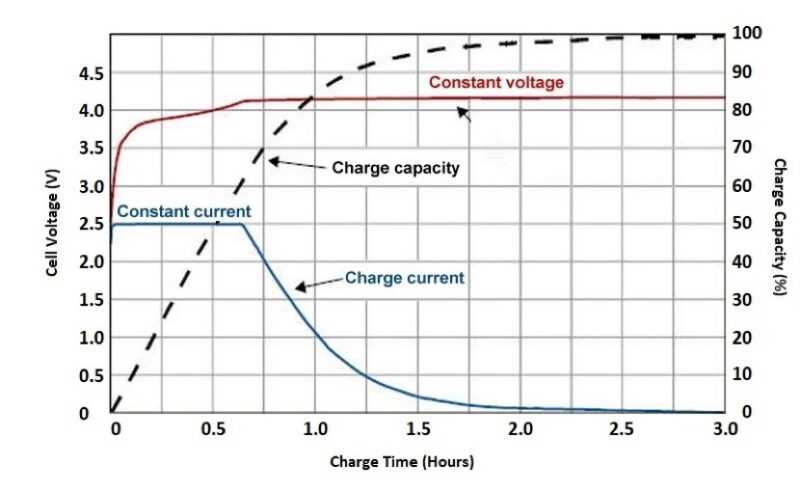

Charge Curve of a Lithium-Ion Battery
Lithium-ion batteries use the Constant Current-Constant Voltage (CC-CV) charging method. The charging curve reflects two phases:
- Constant Current (CC) Phase:
- Initial stage where current remains constant.
- Voltage gradually increases as the battery charges.
- Around 70-80% charge, voltage reaches its limit.
- Constant Voltage (CV) Phase:
- Voltage is held constant while current decreases.
- Charging slows down to prevent overcharging.
- Battery reaches full charge when current drops below 0.05C.
Graph of Voltage vs. Charging Time
Below is a typical charge curve for a lithium-ion battery:
| Time (hours) | Voltage (V) | Current (A) |
|---|---|---|
| 0 | 3.0V | 1C |
| 1 | 3.8V | 1C |
| 2 | 4.1V | 0.7C |
| 3 | 4.2V | 0.2C |
| 4 | 4.2V | 0.05C |
- Fast charge occurs in the CC phase.
- Slow charge in the CV phase ensures battery balancing.
Discharge Curve of a Lithium-Ion Battery
The discharge curve shows how battery voltage declines as energy is consumed.
- Voltage Drop Over the Discharge Cycle:
- At full charge, voltage is around 4.2V.
- As discharge continues, voltage decreases gradually.
- Below 3.0V, the battery may sustain irreversible damage.

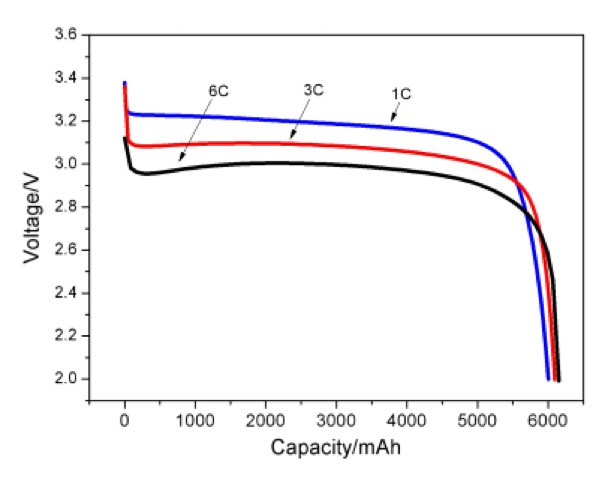

- C-Rate Impact on Discharge Behavior:
- Higher C-rate (faster discharge): Steeper voltage drop, increased heat generation.
- Lower C-rate (slower discharge): More stable voltage, better efficiency.
Typical Discharge Curve
| Discharge Time | Voltage (V) |
|---|---|
| 0 min | 4.2V |
| 30 min | 3.8V |
| 60 min | 3.6V |
| 90 min | 3.3V |
| 120 min | 3.0V |
- A flat discharge curve means stable energy output.
- Rapid voltage drops indicate high load stress.
Comparing Lithium Iron Phosphate (LFP) and Nickel Manganese Cobalt (NMC) Batteries
Different lithium-ion chemistries impact discharge characteristics.
| Feature | LFP (LiFePO₄) | NMC (LiNiMnCoO₂) |
|---|---|---|
| Voltage Stability | More stable | Slight fluctuations |
| Energy Density | Lower | Higher |
| Cycle Life | 2000-5000 cycles | 500-2000 cycles |
| Safety | High (thermal stability) | Moderate (risk of overheating) |
- LFP batteries have a flatter discharge curve, ensuring stable voltage output.
- NMC batteries deliver higher energy density but show steeper voltage drops.
Charging and Discharging Safety Considerations
Lithium-ion batteries offer high efficiency, but improper charging or discharging can lead to serious risks. Overcharging, over-discharging, and poor charging habits affect battery lifespan and safety.
What Happens If a Lithium-Ion Battery Overcharges?
Overcharging forces excess voltage into a battery, leading to dangerous consequences:
- Thermal Runaway Risk:
- Overcharging generates excess heat.
- Elevated temperature accelerates chemical reactions.
- If unchecked, it leads to uncontrollable heat buildup.
- Fire and Explosion Hazards:
- Excess heat can ignite the electrolyte.
- Internal short circuits may trigger explosions.
- Once ignited, fires spread rapidly to other cells.
How to Prevent Overcharging?
✅ Use a smart charger with automatic cut-off.
✅ Avoid cheap, unregulated chargers that lack safety features.
✅ Charge within recommended voltage limits (typically 4.2V per cell).
What Happens If a Lithium-Ion Battery Over-Discharges?
Discharging a battery below its safe voltage threshold causes damage:
- Capacity Loss & Irreversible Damage:
- Deep discharges degrade electrode materials.
- Internal resistance increases, reducing charge retention.
- Extreme cases render the battery unusable.
- Prevention Methods (Battery Management Systems – BMS):
- BMS monitors voltage and prevents over-discharge.
- It disconnects the battery before reaching a critical low voltage.
- Ensures each cell stays within a safe operating range.
Safe Discharge Practices
✅ Keep discharge levels between 20% and 80% for longevity.
✅ Avoid running a device until it shuts off due to low battery.
✅ Store unused batteries at 50-60% charge to prevent deep discharge.
Battery Management Systems (BMS) Role in Safety
A Battery Management System (BMS) controls charging and discharging for safety and efficiency.
| Function | How BMS Protects the Battery |
|---|---|
| Overcharge Protection | Stops charging when voltage reaches 4.2V. |
| Over-Discharge Protection | Cuts off power when voltage drops below 3.0V. |
| Temperature Monitoring | Prevents overheating during charge/discharge cycles. |
| Balancing Cells | Ensures uniform voltage across battery cells. |
BMS prevents common battery failures by maintaining optimal performance.
Common Charging and Discharging Mistakes
Many users unknowingly damage lithium-ion batteries due to poor handling.
❌ Using Cheap/Unregulated Chargers
- Some low-quality chargers lack voltage control.
- Overvoltage leads to overheating, while undervoltage causes incomplete charging.
❌ Charging in Extreme Temperatures
- Cold environments (< 0°C) slow down ion movement, increasing internal resistance.
- High heat (> 45°C) speeds up degradation and shortens lifespan.
❌ Leaving the Battery Connected for Too Long
- After reaching full charge, trickle current continues flowing.
- This gradually heats the battery, stressing internal components.
Factors Affecting Charging and Discharging Efficiency
Lithium-ion battery efficiency depends on several factors, including temperature, load conditions, and aging. Understanding these influences helps optimize battery performance and longevity.
Impact of Temperature on Battery Performance
Temperature significantly affects charging and discharging efficiency. Extreme heat or cold alters ion movement, reducing performance.
- Cold Temperatures (Below 0°C):
- Slows lithium-ion diffusion, increasing internal resistance.
- Reduces available capacity, causing voltage drops.
- Charging below freezing may cause lithium plating, permanently damaging the anode.
- High Temperatures (Above 45°C):
- Accelerates chemical reactions, increasing self-discharge.
- Shortens cycle life by degrading electrolyte and electrode materials.
- Prolonged exposure leads to thermal runaway risks.
Optimal Charging and Discharging Temperatures
| Condition | Temperature Range | Effect on Performance |
|---|---|---|
| Charging | 10°C – 30°C | Maximum efficiency, minimal degradation. |
| Discharging | -20°C – 60°C | Operates within limits, lower efficiency at extreme ends. |
| Storage | 15°C – 25°C | Prevents capacity loss, maintains stability. |
Keeping lithium-ion batteries within these temperature ranges ensures longevity and efficiency.
How Load Conditions Influence Discharging
Power consumption directly affects battery discharge efficiency. High-demand applications strain the battery, reducing overall lifespan.
- High Discharge Current (Heavy Load):
- Rapid ion movement generates heat, increasing wear.
- Causes voltage sag, reducing available capacity.
- Common in power-hungry devices like electric vehicles and high-performance laptops.
- Low Discharge Current (Light Load):
- Slower ion movement, maintaining stable voltage.
- Less heat generation, extending cycle life.
- Ideal for low-power devices like wearables and sensors.
Why Power-Hungry Devices Drain Batteries Faster
| Discharge Rate | Effect on Battery |
|---|---|
| High (above 1C) | Generates heat, reduces efficiency, shortens lifespan. |
| Medium (0.5C – 1C) | Balanced performance and longevity. |
| Low (below 0.5C) | Minimal stress, extends battery life. |
Using batteries at moderate discharge rates maximizes capacity retention.
Battery Aging and Charge Cycle Degradation
Every charge and discharge cycle contributes to battery wear. Over time, capacity declines due to internal material degradation.
- What is a Charge Cycle?
- One complete charge and discharge sequence.
- Batteries degrade over repeated cycles, reducing usable capacity.
- How Battery Capacity Decreases Over Time:
- 500 cycles: Capacity drops by 10-20%.
- 1000 cycles: Further decline to 80% of original capacity.
- Beyond 2000 cycles: Significant wear, limiting usability.
Ways to Extend Battery Lifespan
✅ Charge within the recommended voltage range (3.0V – 4.2V).
✅ Avoid deep discharges (keep battery between 20-80%).
✅ Store partially charged batteries at 50-60% for long-term storage.
✅ Use smart charging technology to prevent overcharging.
✅ Minimize exposure to high temperatures and fast charging.
Fast Charging vs. Slow Charging: Pros and Cons
Charging speed affects lithium-ion battery health, efficiency, and lifespan. While fast charging provides convenience, slow charging helps preserve long-term performance.
Is Fast Charging Bad for Lithium-Ion Batteries?
Fast charging supplies high current, reducing charge time but increasing heat. While modern batteries handle fast charging, repeated exposure may shorten lifespan.
- Heat Generation Concerns:
- Rapid ion movement increases internal resistance.
- Excess heat accelerates electrolyte degradation.
- Frequent overheating leads to capacity loss and potential swelling.
- Impact on Cycle Life:
- Higher charging current stresses electrode materials.
- Faster aging reduces the number of usable cycles.
- Batteries rated for fast charging still degrade faster than those charged at lower currents.
Comparing Fast and Slow Charging Effects
| Charging Type | Charge Speed | Heat Generation | Battery Lifespan Impact |
|---|---|---|---|
| Fast Charging (Above 1C) | 1-2 hours | High | Shortens cycle life |
| Slow Charging (Below 0.5C) | 3-6 hours | Low | Extends longevity |
When Should You Use Slow Charging?
Slow charging uses lower currents, preserving battery health. It minimizes heat and ensures controlled ion movement.
- Benefits of Lower Charging Current:
✅ Less heat production, reducing stress on battery cells.
✅ Improved charge distribution, balancing cell voltages.
✅ Lower risk of thermal runaway. - Extending Battery Health with Slow Charging:
- Ideal for overnight charging, preventing overheating.
- Best for devices used long-term (e.g., laptops, energy storage systems).
- Recommended when battery health is a priority over quick refueling.
Best Chargers for Lithium-Ion Batteries
Not all chargers provide safe and efficient charging. A high-quality charger regulates voltage and current while protecting battery integrity.
- What to Look for in a High-Quality Charger?
- Voltage Regulation: Maintains safe charge limits (typically 4.2V per cell).
- Overcharge Protection: Stops charging when the battery is full.
- Temperature Monitoring: Prevents overheating during charge cycles.
- Smart Chargers and Adaptive Charging Technologies:
- Smart Charging: Adjusts current based on battery state to minimize heat.
- Trickle Charge Mode: Slowly tops off the battery without stressing cells.
- AI-Powered Adaptive Charging: Predicts usage patterns, slowing charging overnight and speeding up when needed.
Recommended Charging Practices
✅ Use original or certified chargers to prevent voltage fluctuations.
✅ Avoid fast charging at extreme temperatures (below 10°C or above 40°C).
✅ Charge between 20-80% for maximum lifespan.
Frequently Asked Questions (FAQs)
How Often Should You Charge a Lithium-Ion Battery?
Charge frequency depends on usage and battery capacity.
- For daily-use devices (smartphones, laptops): Charge when it drops to 20-30%. Avoid full discharges.
- For occasional-use devices (power tools, backup batteries): Keep charge between 40-80% when stored.
- Electric vehicles (EVs): Partial charging (20-80%) increases battery longevity.
Optimal Charging Range
| Charge Level | Effect on Battery Life |
|---|---|
| 0-20% | High stress, reduces cycle life. |
| 20-80% | Ideal range for longevity. |
| 80-100% | Safe, but frequent full charges accelerate degradation. |
Can You Leave a Lithium-Ion Battery Charging Overnight?
Most modern batteries have built-in protection circuits that stop charging at 100%, but keeping it plugged in can generate heat, affecting long-term performance.
- Safe if charger has auto cut-off, but unplugging after full charge is better.
- Wireless chargers generate more heat, accelerating wear.
✅ Best Practice: Unplug after reaching 100% to prevent excess heat.
Why Do Lithium-Ion Batteries Degrade Over Time?
Capacity loss happens due to chemical wear in battery materials.
- Charge cycles: Each charge-discharge reduces capacity.
- High temperature: Speeds up electrolyte breakdown.
- Overcharging & deep discharges: Accelerates electrode wear.
Battery Lifespan Estimation
| Usage Pattern | Expected Capacity Retention |
|---|---|
| Normal (20-80% charge) | 80% after 1000 cycles |
| Frequent full charges | 80% after 500 cycles |
| High temperature use | Faster degradation |
How Can You Tell If a Lithium-Ion Battery Is Overcharged?
Overcharging rarely happens in modern devices, but symptoms include:
- Excessive heat during charging.
- Battery swelling or bulging.
- Reduced runtime despite showing full charge.
If a battery swells, stop using it immediately.
What Is the Best Way to Store Lithium-Ion Batteries?
Long-term storage affects battery health. Follow these guidelines:
✅ Charge to 50-60% before storing.
✅ Keep at room temperature (15-25°C).
✅ Store in a dry, ventilated area.
✅ Avoid direct sunlight or freezing temperatures.
How Do You Prevent Lithium-Ion Battery Swelling?
Swelling occurs due to gas buildup from chemical degradation. Preventive steps:
✅ Use an original charger to avoid overvoltage.
✅ Avoid high-temperature charging and storage.
✅ Keep charge cycles between 20-80% for longevity.
✅ Replace aging batteries before swelling occurs.
Write to End
Lithium-ion batteries power modern devices. Proper charging and discharging maintain efficiency and extend lifespan. Heat, voltage, and charge cycles affect performance.
Key Takeaways
- Charging uses CC-CV methods to prevent overcharging.
- Discharging below 3.0V damages capacity, shortening battery life.
Need expert guidance on lithium-ion battery charging and discharging? Tertron provides reliable solutions for battery manufacturing and testing. Contact us for insights on improving efficiency and safety in your battery systems. Visit Tertron today to learn more.
